K-Cup Filling and Sealing Machine CF30
A compact rotary route for your capsule project.
Bring coffee dosing, pre-cut lid placement and sealing into a small rotary machine configuration. Match the cup, lid and coffee to build the right starting point for your single-serve coffee production.
- Small rotary platform
- Pre-cut lid reference model
- PLC & touchscreen control
- Nitrogen connection
Send cup and lid drawings, coffee dose and required output. Tooling and K-Cup compatibility are confirmed with your actual components.
Accepted output depends on your project
Allow additional working clearance
Lid range is specified separately
Total machine power reference
The machine at a glance
Start your single-serve route with a compact platform.
The CF30 is a small rotary coffee capsule filling and sealing machine. The technical table lists 30 capsules per minute, single-phase 220 V supply and a machine size of 800 × 800 × 1500 mm. The reference configuration uses pre-cut lids and includes a nitrogen connection.
For a K-Cup project, approve the complete cup assembly, lid and tooling together. The compact route can be assessed for roasters, private-label coffee projects and product development when the required output fits the tested configuration.
Cup & lid selection
Match the whole package. From body to seal.
A cup within the diameter range still needs the right mold, feeding arrangement and lid. Confirm the complete package before ordering tooling.
Cup body & internal structure
K-Cup and custom cup projects
Check the body, flange, taper, filter arrangement and stack behavior. Agree whether cups arrive with filters already installed or require a separately supplied process.
Pre-cut lid & sealing surface
Approve the actual cup–lid pair
The cup OD reference is 37–68 mm; the lid OD reference is 37–54 mm. A larger cup does not automatically mean its required lid is supported. Confirm the drawing and sealing tooling.
The reference package lists one Nespresso-compatible mold set. Specify your own K-Cup tooling in the proposal. Cup format names alone do not confirm compatibility with every component or brewer.
Why assess CF30
A smaller machine. A clearly defined project.
01 · Site fit
Compact machine envelope
The 800 × 800 mm reference machine base helps with early workshop planning. Account for operator access, coffee loading, utilities and service clearance in the final layout.
02 · Process fit
Coordinated rotary workflow
Evaluate coffee filling, pre-cut lid placement, heat sealing and discharge as one sequence. Match each operation to the approved cup and lid rather than selecting by format name alone.
03 · Budget fit
Configuration you can compare
Separate the core machine, molds, nitrogen equipment, compressor and downstream packing in an itemized quotation. This makes the investment easier to assess.
Working principle
A rotary workflow built around the finished capsule.
These process steps explain the reference route; they do not specify the number or physical arrangement of rotary stations.
Present the cups
Approve cup feeding, orientation and the handling of nested or deformed components.
Seat the cup
Support the body and flange with tooling matched to the approved drawing.
Dose the coffee
Establish the filling arrangement and settings using your coffee and target dose.
Keep the flange clear
Define dust removal and the acceptable sealing-rim condition after filling.
Set the gas requirement
If nitrogen is selected, define the supply connection and flushing arrangement.
Place pre-cut lids
Check lid separation, orientation and placement with the selected material.
Heat seal
Develop temperature, contact and dwell settings for the actual cup and lid.
Discharge & collect
Agree finished-cup collection, selected rejects and any downstream transfer.
Machine design
Six things to review before you order.
Design review · 01
PLC & touchscreen control
The description lists PLC control, a touchscreen interface and multiple monitoring points. Approve the actual alarm, stop and restart behavior for the supplied build.
Design review · 02
Coffee-matched filling
Choose the filler and contact parts around grind, density, flow and target dose. Test dose variation and coffee contamination on the sealing flange.
Design review · 03
Pre-cut lid handling
Confirm the lid OD, stack behavior, curl, coating and placement conditions. Develop sealing settings using the approved cup–lid combination.
Design review · 04
Nitrogen connection
The reference package includes a nitrogen connection. Specify gas supply, flushing conditions and measurement requirements; a generator and dryer are separate options.
Design review · 05
Separated machine areas
The description identifies separated transmission and packaging areas. Confirm removable contact parts, cleaning access and inspection points for the final machine.
Design review · 06
Project-matched molds
The source allows molds to be designed for customer requirements. Agree every cup drawing, format part and lid-tooling requirement before the configuration is fixed.
Technical reference
CF30 K-Cup filling and sealing machine specifications.
These figures support initial selection. Final machine scope, utilities and accepted production conditions belong in the current proposal.
| Item | Reference value | Project note |
|---|---|---|
| Machine model | CF30 | Small rotary coffee capsule fill and seal configuration. |
| Production capacity | 30 capsules/min | Technical-table reference; accepted output is tested with your components and coffee. |
| Cup outer diameter | 37–68 mm | Requires drawing, feeding and mold approval. |
| Cup height | 28–50 mm | Confirm taper, flange and support geometry. |
| Pre-cut lid outer diameter | 37–54 mm | Listed separately from the cup OD; approve lid and sealing tooling. |
| Power supply | Single-phase 220 V | Confirm local frequency and electrical connection requirements. |
| Main motor / total power | 0.2 kW / 2 kW | Reference configuration; auxiliary equipment adds its own load. |
| Compressed air pressure | 0.6–0.8 MPa | Confirm air quality, connection and regulated supply. |
| Machine dimensions | 800 × 800 × 1500 mm | Machine reference only; allow access and auxiliary equipment space. |
| Machine weight | 300 kg | Confirm final build and shipping envelope. |
| Controls | PLC and touchscreen | Approve interface language, alarms, access and restart rules. |
| Rejection / overload | Automatic waste rejection and stop on overload | Listed functions; specific detection triggers and any weighing hardware must be agreed. |
Output, operating scope and utility notes
| Topic | Reference information | Confirmation needed |
|---|---|---|
| Operating speed | 25–35 cups/min also described | The amount of packed material affects speed. Use the table value of 30 capsules/min for initial selection and test saleable output. |
| Operator requirement | One person for the machine in the reference description | Assess cup refill, coffee supply, quality checks, packing and cleaning separately when planning line staffing. |
| Air consumption | 0.6 m³/h as listed | Confirm the stated unit and current demand before selecting a compressor. |
| Noise | <70 dB as listed | Confirm measurement position, running condition and auxiliary-equipment boundary. |
| Cleaning | Separated transmission and packaging areas; easy cleaning described | Approve the contact-part list, removal method, cleaning procedure and inspection requirements. |
Product changeover & access
Make cleaning and refilling part of the selection.

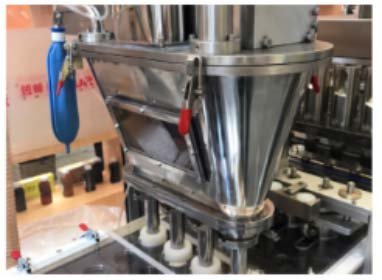

Coffee oils and fine particles can build up around the filling path. Review the hopper, filling parts, tooling and sealing area with the operator tasks in mind.
- Identify the product-contact parts and removal method.
- Confirm clean, dry and inspect steps before restart.
- List mold, guides, lid tooling and recipe changes for each format.
- Define flavor or allergen change procedures if relevant.
Acceptance that matters
Test the coffee. Check every finished cup.
Compare machines using accepted output after filling, lid placement and seal requirements are applied.
Fill weight
Run the actual coffee at the target dose. Record sample variation, refill behavior and the agreed finished-weight limits.
Lid & seal
Inspect lid placement, rim cleanliness, leakage and opening behavior using approved production components.
Gas result
If required, measure residual oxygen with an agreed instrument, timing and sampling plan. Validate shelf life separately.
Accepted output
Record conforming capsules over the agreed run, including component refill, stoppages and selected reject rules.
Prepare your test with the coffee capsule machine FAT checklist. FAT means factory acceptance testing.
Price & quotation scope
Get a CF30 price for the configuration you need.
The price depends on the approved cup, lid, mold, coffee-filling arrangement, gas equipment and delivery scope. Request an itemized quotation instead of comparing machine names alone.
Reference package
Machine & core configuration
- CF30 small rotary pre-cut lid reference model
- One Nespresso-compatible reference mold set
- Nitrogen connection device
- Dust removal device
Confirm each inclusion in the current offer. The reference Nespresso-compatible mold does not automatically include your K-Cup format tooling.
Selected additions
Project options & interfaces
- Your K-Cup or custom-cup molds and format parts
- Nitrogen generator and dryer
- Flavor injection equipment
- Air compressor and air tank
- Capsule and lid supply, if requested
- Inspection, coding or downstream packing scope, if requested
Requested inspection or line equipment is subject to engineering review; it is not assumed to be built into the reference machine.
Send one complete set of requirements
Cup and lid drawings or samples · coffee grind and density · target dose and tolerance · required accepted output · voltage and frequency · gas supply and oxygen target · required formats · destination · installation and packing needs.
Installation & handover
Plan the operator tasks and the next packaging step.
Before delivery
Site readiness
Check access doors, final orientation, power, compressed air and gas supply. Allow room for coffee loading, component refill, cleaning and service.
Before production
Handover & support
Confirm manuals, approved recipes, tooling identification, training language and spare parts. Put installation, warranty and any on-site support responsibilities in the current agreement.
After the capsule
Downstream packing
Define counting, collection and cartoning separately. Review the coffee automatic cartoning machine after the capsule output and transfer conditions are established.
Factory acceptance and line-interface checklist
- Run production-intent cups, lids and coffee together.
- Measure fill variation, lid placement and seal integrity.
- Confirm selected detection, reject and overload-stop behavior.
- Check gas performance when it is part of the agreed scope.
- Record accepted output, stoppages and refill conditions.
- Demonstrate agreed cleaning and format-change tasks.
- Define the collection or downstream transfer point.
- Record open items, documents and responsibilities before handover.
For a multi-machine project, use the packaging system integration checklist to assign the utilities, transfer and acceptance responsibilities.
Before you order
K-Cup filling and sealing machine FAQ.
What is the CF30 K-Cup filling and sealing machine?
What output should I use for planning?
Which cup and lid sizes are listed?
Does one mold cover both K-Cup and Nespresso-compatible capsules?
Does CF30 automatically install K-Cup filters?
Does the reference machine use pre-cut lids or roll film?
What filling accuracy can I expect?
Does it include a nitrogen generator or guarantee shelf life?
What power and air supply are listed?
Can one operator manage production?
How do I clean the machine or change capsule formats?
What information is needed for a CF30 price and delivery proposal?
Compare coffee capsule routes
Choose the platform around your format and output.
Compare a four-lane platform
CF240 Coffee Capsule Machine
Review the four-lane capsule filling and sealing route when your required output calls for a different machine configuration.
Review CF240 →
Compare a dedicated capsule route
CF80 Nespresso-Compatible Machine
Assess the dedicated rotary capsule application against your actual components, coffee dose and lid requirements.
Review CF80 →Start your capsule project
Your cup. Your coffee. Your CF30 proposal.
Share the cup, lid, target dose and output requirement. INMAYPACK can review the machine configuration, tooling and options for a project-matched offer.
