Coffee Capsule Filling Machine CF140
Ground coffee in. Sealed capsules out.
Bring capsule handling, auger filling, pre-cut lid placement and heat sealing into one rotary process. Build your single-serve coffee production around the CF140 double-head configuration, with tooling and options matched to your capsule and coffee.
- Rotary double-head design
- Pre-cut lid sealing
- PLC + touchscreen
- Nitrogen connection
Send capsule and lid drawings, coffee dose and required output for a project-matched proposal.
Accepted output confirmed by sample test
Capsule body range is separate
The machine at a glance
A coordinated rotary route for single-serve coffee.

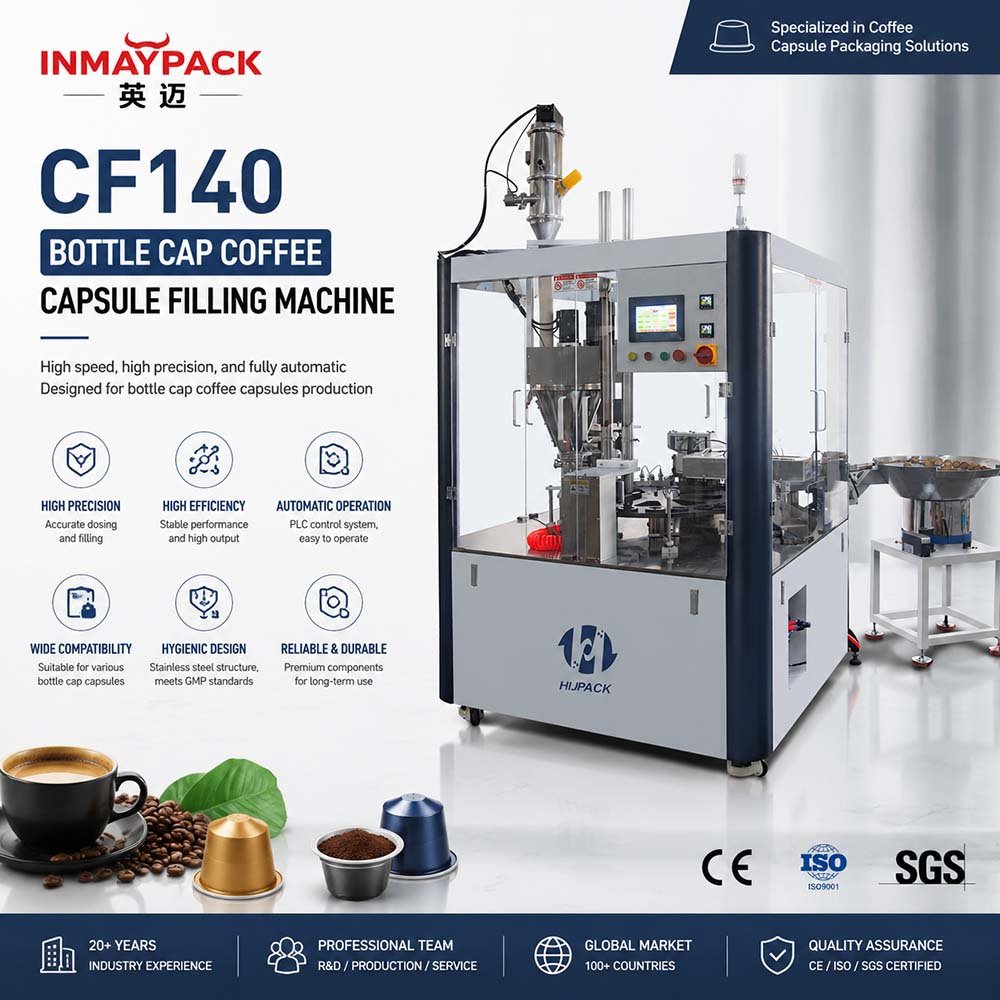

The CF140 coffee capsule filling machine is a rotary double-head system for ground coffee and pre-cut lids. Its working turntable carries capsule bodies through coffee dosing, lid placement and heat sealing. The reference equipment list includes coffee transfer, a nitrogen connection and dust removal.
The technical table lists 90 capsules per minute. Choose the machine around your actual capsule, lid and coffee, then confirm the output and finished-pack quality together in the sample test.
Capsule & lid matching
Two dimensions. One approved package.
The capsule body and pre-cut lid have separate listed ranges. Confirm both components and the matched tooling before production.
Capsule body
37–68 mm outer diameter
Listed height: 28–50 mm. Review the taper, flange, nesting, material and tolerance with the drawing and production samples.
Pre-cut lid
37–54 mm outer diameter
Match the lid diameter, coating and sealing layer to the approved capsule. A wider body range does not establish a 68 mm lid capability.
The reference quotation lists one Nespresso-format mold set. Confirm your exact Nespresso-compatible capsule drawing and tooling in the current offer; a format name does not establish universal compatibility or brand endorsement.
Production value
Bring the process together. Keep the scope clear.
01 · Integration
Coordinated capsule operations
Review capsule supply, double-head filling, lid placement and sealing as one machine configuration. Define the coffee infeed and finished-capsule handoff.
02 · Practical access
Access for daily operation
Transmission and packaging areas are separated in the reference design. Review product-contact access, cleaning steps and maintenance clearance in the machine layout.
03 · Control
Operating status at the machine
PLC and touchscreen control provide the operator interface. Agree the selected monitoring points, fault messages and stop behavior for the project.
Inside the rotary machine
See the mechanism behind the finished capsule.
The turntable indexes capsule bodies between the configured operations. Stable seating, coffee dosing, clean sealing flanges and aligned lids work together to produce the approved package.
- Capsule support matched to the body and flange
- Auger filling selected for the ground coffee
- Pre-cut lid handling and controlled heat sealing
- Agreed monitoring and reject conditions
Coffee dosing
Auger filling assembly
Match coffee grind, bulk density and target dose to the filling parts and settings.

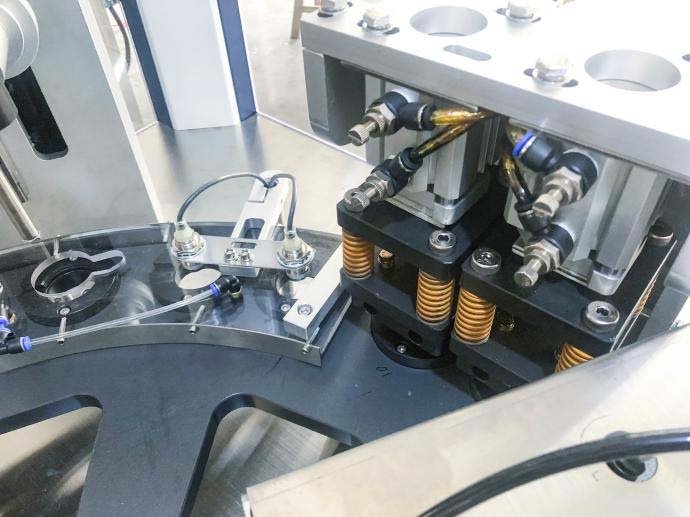

Package closure
Heat sealing head
Set temperature, contact and dwell around the capsule and lid sealing materials.

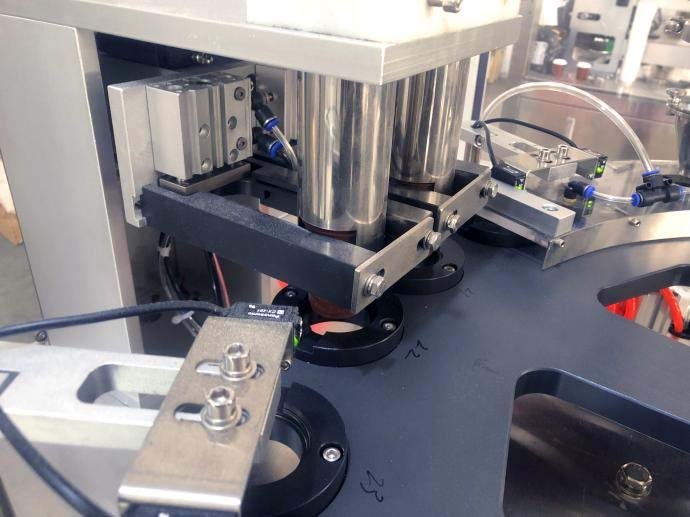

Capsule handling
Capsule supply station
Review nesting, separation and seating with the actual capsule body.
Working principle
From an empty body to a sealed coffee capsule.
These are process steps. Their sequence and physical station arrangement are confirmed in the selected machine layout.
Supply capsule bodies
Review orientation, separation and the incoming capsule condition.
Seat in the rotary mold
Support the approved capsule body and sealing flange.
Convey & dose coffee
Use the selected coffee feeder and screw dosing arrangement.
Control the sealing rim
Set dust removal and the accepted flange cleanliness.
Apply the nitrogen plan
Define gas supply and flushing when the application requires it.
Place pre-cut lids
Check separation, pickup and alignment with the capsule.
Heat seal the package
Establish the sealing window for the approved materials.
Discharge & transfer
Define capsule collection, selected rejection and downstream handoff.
Technical reference
Coffee capsule filling machine CF140 specifications.
Use the documented configuration for initial selection and site planning. The current proposal confirms the final build.
| Item | Reference value | Selection note |
|---|---|---|
| Model / architecture | CF140 / rotary double-head | CF140 is the model designation, not a 140-capsule/min output claim. |
| Production capacity | 90 capsules/min | Technical-table reference. Confirm accepted output with your capsule, lid and coffee. |
| Capsule outer diameter | 37–68 mm | Body range; review the drawing and matched tooling. |
| Capsule height | 28–50 mm | Confirm shape, nesting and mold support. |
| Pre-cut lid outer diameter | 37–54 mm | Separate lid range; confirm coating and sealing layer. |
| Power supply | Single-phase 220 V | Confirm local frequency and connection requirements. |
| Main motor / total power | 0.75 kW / 7 kW | Auxiliary devices may require separate electrical loads. |
| Compressed air pressure | 0.6–0.8 MPa | Agree regulated supply, air quality and connection. |
| Machine dimensions | 1300 × 1300 × 1900 mm | Allow additional loading, cleaning and service clearance. |
| Machine weight | 1200 kg | Verify the final build and shipping weight before site or lifting planning. |
| Rejection / overload | Automatic waste rejection; stop on overload | Agree detection triggers and selected inspection hardware. |
Capacity range, air consumption and component notes
| Item | Source reference | Project confirmation |
|---|---|---|
| Narrative output range | 80–120 cups/min | The source says output depends on the amount of product. The technical table lists 90 capsules/min; neither is an unconditional accepted-output guarantee. |
| Air consumption | 0.6 m³/h as written | Verify the stated unit and current air demand before compressor sizing. |
| Noise | <70 dB as listed | Confirm operating state, measuring position and auxiliary-equipment boundary. |
| Control components | Schneider PLC, HMI, servo, driver and inverter references | Confirm the current bill of materials and approved substitutions. |
| Other components | SICK encoder; Omron E5CC temperature control; AirTAC pneumatic parts | Component brands are source references, subject to the agreed current build. |
| Dose accuracy / oxygen | No numeric CF140 guarantee in the supplied document | Agree dose tolerance and any residual-oxygen target, method and sampling with your actual materials. |
Sample testing & capsule quality
Measure the dose. Prove the seal.
Test the actual coffee, capsule and lid together. A useful production trial records accepted output and the quality of the finished pack.
Coffee dose
Measure fill-weight variation at the target dose, including startup and refill conditions.
Lid alignment
Inspect placement, overlap and the defined response to missing or displaced lids.
Seal integrity
Check leakage, appearance and opening behavior with an agreed test method.
Gas result
When specified, measure residual oxygen under the agreed conditions. Validate shelf life separately with the coffee and pack.
Prepare the test with the coffee capsule filling machine FAT checklist. FAT means factory acceptance testing.
Options & configuration
Select the equipment for your production needs.
Configuration review · 01
Additional capsule tooling
Quote each additional mold and the capsule supply, lid handling and recipe changes needed for the approved format.
Configuration review · 02
Capsule weighing
Select weighing and reject handling where required. Agree the check range, test samples and reject confirmation.
Configuration review · 03
Nitrogen generator & dryer
A nitrogen connection is listed on the reference machine. Gas generation and drying are separate selected equipment.
Configuration review · 04
Compressed air equipment
Size the compressor around verified demand and selected auxiliaries. Confirm air quality and utility connections.
Configuration review · 05
Flavor injection
Assess the flavor, dose, contact parts and cleaning requirements before adding liquid flavor equipment.
Configuration review · 06
Vibratory supply device
The options list includes a vibrator disc device. Confirm the component handled, orientation and machine interface.
Machine price & quotation
Get a proposal for the capsule you will produce.
CF140 price depends on the tooling, coffee-filling arrangement, selected weighing, gas supply and line scope. Request an itemized quotation around the approved capsule and sample test.
Reference machine package
Machine & listed equipment
- CF140 rotary double-head machine with pre-cut lid route
- Automatic vacuum feeder for coffee conveying
- One reference Nespresso-format mold set, subject to capsule drawing approval
- Nitrogen connection entrance
- Dust removal device
Confirm each inclusion in the current quotation. A vacuum feeder conveys coffee; it does not mean the finished capsule is vacuum packed.
Selected additions
Options & line equipment
- Additional capsule tooling
- Capsule weighing
- Nitrogen generator and dryer
- Air compressor
- Flavor injection
- Vibrator disc device
- Downstream cartoning and connecting equipment as a separate line scope
The nitrogen connection does not include a generator by itself. Optional weighing and secondary packing require their own agreed scope.
Prepare the inputs for a matched quotation
Capsule and lid drawings or samples · coffee grind and density · target dose and tolerance · accepted-output requirement · local power and air · gas needs · format changes · weighing · destination · installation and downstream packing.
From capsule to retail pack
Plan the handoff to secondary packaging.
Machine interface
Finished-capsule transfer
Define collection, orientation, accumulation and transfer height. Agree the response when downstream equipment pauses.
Retail packing
Automatic cartoning
Review the coffee automatic cartoning machine with your carton, capsule grouping and loading arrangement. Quote it separately from the CF140.
Project delivery
Installation & handover
Confirm layout, utilities, manuals, training and support responsibilities. Use turnkey packaging solutions to coordinate a wider project and its interfaces.
What should the acceptance test demonstrate?
- Run production-intent coffee, capsule bodies and pre-cut lids together.
- Record accepted output, duration, refill conditions and stoppages.
- Sample dose variation and inspect lid placement and sealing.
- Measure residual oxygen if a gas target is agreed.
- Demonstrate the selected detection, reject and overload-stop behavior.
- Review product-contact access, cleaning and agreed format changes.
- Check capsule collection or the downstream transfer.
- Record test results, open items and handover documents.
Before you order
Coffee capsule filling machine CF140 FAQ.
What is the CF140 coffee capsule filling machine?
Does CF140 mean 140 capsules per minute?
What capsule and lid dimensions are listed?
Can CF140 run Nespresso-compatible capsules?
Does this CF140 configuration use pre-cut lids or roll film?
What coffee dose and filling accuracy are guaranteed?
Is capsule weighing included?
Does nitrogen flushing guarantee shelf life?
What utilities does CF140 need?
What are the machine dimensions and weight?
Can CF140 connect to an automatic cartoning line?
How do I get a current CF140 quotation?
