Nespresso Compatible Capsule Filling Machine CF80
Coffee filling and pre-cut lid sealing. One rotary route.
Build your single-serve coffee project around a coordinated rotary machine. Match the capsule, ground coffee, fill weight and lid to select the right tooling, gas arrangement and production configuration.
- Rotary disc configuration
- Screw coffee filling route
- Pre-cut lid reference model
- Nitrogen connection
Send capsule and lid drawings, target coffee dose and output requirement for a project-matched proposal.
CF80 is the model designation
Drawing and tooling approval required
The machine at a glance
A rotary platform for your coffee capsule project.
The CF80 is a rotary coffee capsule filling and sealing configuration with screw feeding, pre-cut lid handling, a nitrogen connection and dust removal. Its technical table lists a 60-capsule-per-minute reference and capsule dimensions of 37–54 mm outer diameter by 28–50 mm height.
Use these figures to begin selection, then approve the package and coffee together. Capsule shape, dose, lid material and sealing conditions determine the configuration and the accepted output for your project.
Capsule & lid matching
Nespresso-compatible starts with the right components.
Approve the actual capsule body and lid before the mold is made. A format name or outside diameter does not define every detail needed for reliable feeding and sealing.
Capsule body & tooling
Support the body and sealing flange
Review taper, height, flange stiffness, nesting and production tolerances. Select mold support and feeding parts for the intended capsule supplier and material.
Pre-cut lid & package integrity
Match the lid to the capsule
Confirm lid diameter, coating, stack behavior and sealing layer. Test placement, seal integrity and opening behavior with production-intent capsule bodies.
The reference equipment list names a K-Cup mold set. Specify the exact tooling for your Nespresso-compatible capsule in the current proposal. Compatibility is confirmed with drawings and samples; the format name does not establish brand endorsement.
Production decisions
Connect the filling route with your commercial needs.
01 · Integration
A complete primary-pack route
Assess capsule handling, screw filling, lid placement and sealing together. Define the product feed and finished-capsule handoff before comparing machine quotations.
02 · Coffee fit
Coffee-matched filling
Choose filling parts and settings for the grind, density and target dose. Include rim cleanliness and usable headspace in the product trial.
03 · Scope clarity
A clear options boundary
Separate extra tooling, capsule weighing, nitrogen generation and downstream packing. Agree what each selected module supplies and how it will be accepted.

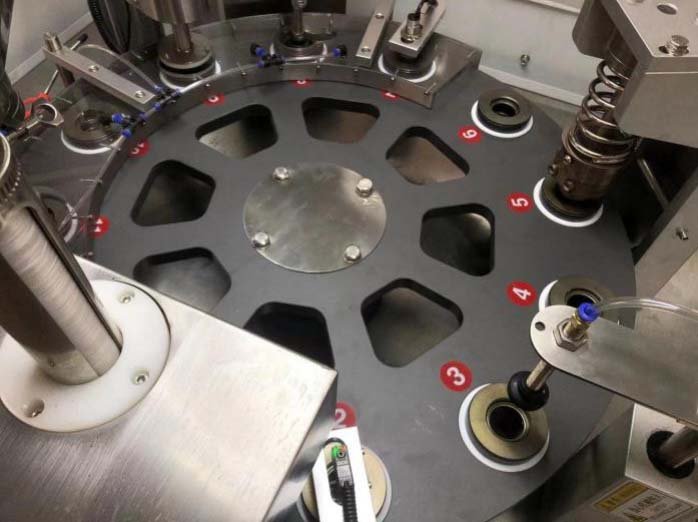

Inside the rotary machine
See how the capsule moves through the indexed process.
The working turntable carries capsules through the configured operations. Tooling alignment, stable coffee filling, accurate lid placement and a suitable sealing window all contribute to a conforming finished capsule.
- Turntable and capsule mold fit
- Coffee screw-feeding arrangement
- Capsule supply and pre-cut lid handling
- Dust-removal and nitrogen connection points
Working principle
From empty capsule to finished coffee pack.
The steps describe the process route. They do not prescribe the number or physical arrangement of rotary stations.
Present capsules
Approve supply, orientation and handling of nested or damaged bodies.
Seat in the tooling
Support the capsule and flange in the matched rotary mold.
Supply & fill coffee
Use the selected product-feed and screw-filling arrangement for the target dose.
Protect the flange
Set dust removal and the accepted rim condition before sealing.
Apply the gas plan
Define nitrogen supply and flushing conditions when required.
Position pre-cut lids
Check lid separation, pickup, release and alignment with the capsule.
Heat seal
Establish contact, temperature and dwell for the approved package materials.
Discharge & transfer
Agree collection, selected rejection and any downstream packing interface.
Technical reference
Nespresso compatible capsule filling machine CF80 specifications.
Use the documented configuration for initial planning, then confirm the final build and acceptance conditions in the project proposal.
| Item | Reference value | Selection note |
|---|---|---|
| Model / architecture | CF80 / rotary disc, one-head reference | Machine designation does not define output by itself. |
| Production capacity | 60 capsules/min | Technical-table reference; verify accepted output with your coffee and components. |
| Capsule outer diameter | 37–54 mm | Requires capsule drawing and mold approval. |
| Capsule height | 28–50 mm | Review body shape, flange and seating in the mold. |
| Lid outer diameter | 37–54 mm | Pre-cut lid reference; confirm coating and sealing layer. |
| Power supply | Single-phase 220 V | Confirm local frequency and electrical connection requirements. |
| Main motor / total power | 0.75 kW / 2.5 kW | Reference machine; auxiliary devices have separate electrical loads. |
| Compressed air pressure | 0.6–0.8 MPa | Confirm air quality, connection and regulated supply. |
| Machine dimensions | 1300 × 1100 × 1900 mm | Reference machine envelope; allow service and auxiliary equipment space. |
| Rejection / overload | Automatic waste rejection and stop on overload | Specific detection triggers and any weighing hardware must be agreed. |
Machine weight, air consumption and component notes
| Item | Reference information | Confirmation needed |
|---|---|---|
| Machine weight | 1500 kg as listed | Verify the final machine and shipping weight before floor-load, lifting or freight planning. |
| Air consumption | 0.6 m³/h as listed | Verify the stated unit and current demand before compressor sizing. |
| Noise | <70 dB as listed | Agree measurement location, machine state and the auxiliary-equipment boundary. |
| Electrical components | Schneider, SICK and other component references | Confirm the current component list, approved substitutions and support requirements. |
| Dose accuracy | No numeric accuracy guarantee in the CF80 document | Agree target dose, permitted variation, test method and sampling with the actual coffee. |
| Gas performance | Nitrogen connection; generator and dryer optional | Set any residual-oxygen target and measurement method for the selected project. |
For this CF80 configuration, 60 capsules/min is the listed production reference. Accepted output includes the agreed fill, lid, seal and reject requirements.
Capsule quality & sample testing
Fill consistently. Seal with evidence.
A useful product trial checks more than a short run of the empty machine. Bring the actual capsule, lid and coffee into the same test.
Coffee dose
Measure fill-weight variation at the target dose and record refill, settling and startup behavior.
Lid placement
Inspect separation, orientation and alignment. Define the response to missing or displaced lids.
Sealing integrity
Approve leakage, opening behavior and appearance using an agreed test method and sample plan.
Nitrogen result
If required, measure residual oxygen under agreed conditions. Validate shelf life with the coffee and finished package separately.
Prepare the run with the coffee capsule filling machine FAT checklist. FAT means factory acceptance testing.
Options & project scope
Select the additions that serve your production.
Configuration review · 01
Additional capsule tooling
Provide the next capsule drawing and samples. Quote the mold, feeding guides, lid parts and recipe changes needed for each approved format.
Configuration review · 02
Capsule weighing
The source lists weighing and removal of nonconforming capsules as an option. Define the check range, test samples, reject confirmation and records.
Configuration review · 03
Nitrogen generator & dryer
Select gas supply around the required purity, flow and package result. Confirm compressor capacity, connection points and the oxygen measurement method.
Configuration review · 04
Coffee product transfer
The reference package includes an automatic vacuum feeder for coffee conveying. Match loading, powder flow and product-contact parts to the coffee.
Configuration review · 05
Air supply & access
Quote the compressor and its connection separately when needed. Confirm regulated pressure, air quality, loading access and cleaning tasks.
Configuration review · 06
Flavor or capsule supply
Flavor injection and capsule/lid supply can be assessed for the project. Define dosing, contact parts and cleaning needs for any added liquid flavor.
Machine price & quotation
Get a quote for your approved capsule configuration.
CF80 price depends on the capsule tooling, coffee-filling arrangement, nitrogen supply, weighing and downstream scope. Request an itemized offer with the required sample test and delivery responsibilities.
Reference machine package
Machine & listed equipment
- CF80 rotary pre-cut lid reference machine
- Automatic vacuum feeder for coffee transfer
- One reference mold set (listed as K-Cup; confirm your required format)
- Nitrogen connection entrance
- Dust removal device
Confirm each inclusion in the current quotation. A vacuum feeder conveys coffee; it does not mean the finished capsule is vacuum packed.
Selected additions
Options & line equipment
- Nespresso-compatible or additional format tooling as required
- Capsule weighing system
- Nitrogen generator and dryer
- Flavor injection equipment
- Air compressor
- Capsule and lid supply
- Cartoning and connecting equipment as a separately quoted line scope
A nitrogen connection is separate from gas generation equipment. Capsule weighing and downstream cartoning are separate selections.
Prepare the inputs for an accurate proposal
Capsule and lid drawings or samples · coffee grind and density · target fill weight and limits · required accepted output · local power and air · nitrogen plan · weighing and format changes · destination · installation and secondary packing needs.
From capsule to retail pack
Connect CF80 to the next packaging step.
Machine interface
Finished-capsule transfer
Define orientation, collection, accumulation and transfer height. Agree the behavior when downstream equipment stops so capsules remain controlled.
Secondary packing
Cartoning configuration
The CF80 quotation material includes a separate WZTS-60 cartoning line scope. Review the coffee automatic cartoning machine with the intended carton and capsule grouping.
Delivery scope
Installation & handover
Confirm layout, utilities, manuals, training, spare parts and support responsibilities. For a wider project, use the turnkey packaging solutions route to define each equipment interface.
What should the factory acceptance test cover?
- Run the approved coffee, capsule bodies and pre-cut lids together.
- Record accepted output, run duration, refill conditions and stoppages.
- Sample dose variation and inspect lid placement and sealing.
- Measure residual oxygen if a gas target is part of the agreement.
- Demonstrate selected inspection, reject and overload-stop functions.
- Review contact-part removal, cleaning and each agreed changeover.
- Check capsule collection or the downstream machine transfer.
- Record open items, test results and the documents required for handover.
Before you order
Nespresso compatible capsule filling machine FAQ.
What is the CF80 Nespresso compatible capsule filling machine?
Does CF80 mean 80 capsules per minute?
What capsule and lid dimensions are listed?
Is a Nespresso-compatible mold automatically included?
Does the reference machine use pre-cut lids or roll film?
What filling accuracy does the CF80 guarantee?
Does the machine include capsule weighing?
Does the nitrogen connection include a generator or guarantee shelf life?
What electrical supply and compressed air are listed?
What space and weight should I plan for?
Can CF80 connect to an automatic cartoning machine?
