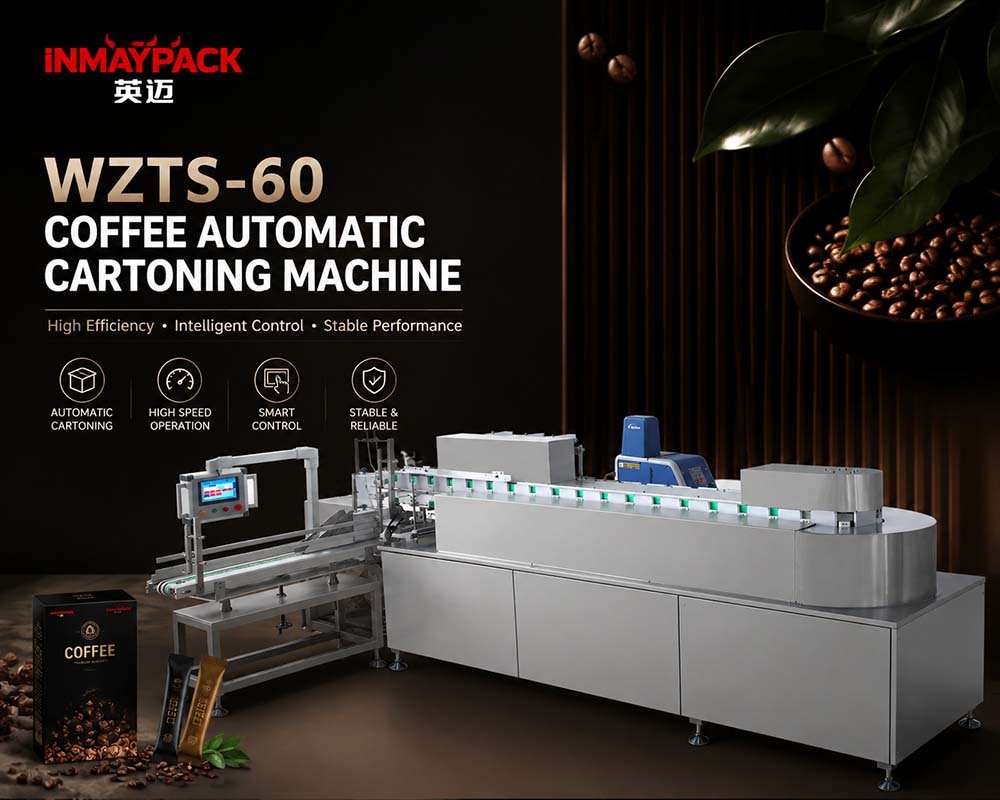

Coffee Automatic Cartoning Machine WZTS-60
From finished capsules to a retail-ready carton.
Bring product feeding, vertical loading, batch marking and carton closure into one coordinated packing route. Match the WZTS-60 to your coffee capsules, carton and upstream output to define a practical secondary packaging line.
- Vertical loading architecture
- Connecting & feeding device
- Tuck-in closure route
- Selected hot melt option
Send your carton drawing, product samples, pieces per carton and line requirement for a matched proposal.
Product, carton and line dependent
1.5 kW main motor reference
The machine at a glance
The next step after coffee capsule filling.
The WZTS-60 coffee automatic cartoning machine is a vertical-loading system for placing the approved product group into a carton and closing the pack. Its reference scope includes a connecting and feeding device; the operating interface is used to set the required number of items for the selected feeding arrangement.
The listed speed is 10–30 cartons per minute, dependent on the upstream coffee capsule filling machine and the selected product and carton. Confirm grouping, feeding, loading and closure together before setting the accepted line output.
Product & carton matching
Approve the pack. Then configure the machine.
The listed carton range is a selection reference. Carton behavior and the product loading pattern must be reviewed together.
Carton geometry
40 × 30 × 50 to 180 × 180 × 300 mm
Listed minimum and maximum carton sizes, L × W × H. Confirm dimension orientation, flap design, opening behavior and the exact format parts.
Product group
Define the items in each carton
Review capsule shape, count, orientation and any insert or tray. A carton within the dimension range still requires a product and loading trial.
Carton board is listed at about 350 g/m², depending on carton size. Board stiffness, folds, print finish and dimensional variation also affect carton handling. Diagrams illustrate the selection questions, not a supplied pack layout.
Production value
Coordinate the handoff. Finish the retail pack.
01 · Product transfer
Defined upstream connection
Review the connecting and feeding device against your capsule discharge, transfer height, orientation and accumulation needs.
02 · Pack completion
A complete carton route
Assess carton supply, loading, batch marking, end closure and discharge as one sequence using your production-intent cartons.
03 · Practical control
Control around the package
The reference component list identifies Siemens PLC and touchscreen. Agree recipes, selected inspection, alarm responses and changeover requirements.
Working principle
From product infeed to a closed carton.
The process describes the intended route. Final station sequence, monitoring and feeding equipment follow the approved layout.
Feed the finished product
Present capsules or another approved product to the selected feeding device.
Form the required group
Agree the count, orientation and arrangement for each carton.
Present carton blanks
Review magazine loading, blank separation and opening behavior.
Open & support the carton
Hold the carton in a suitable position for the approved vertical loading route.
Load the product
Transfer the approved product group without damaging capsules, lids or the carton.
Mark the batch
Specify the required batch number and marking equipment.
Close the carton ends
Apply the selected paper-tongue or hot melt closure route.
Discharge & transfer
Agree collection, selected reject behavior and the next equipment interface.
Carton closure choices
Choose the finish for your retail carton.
Paper-tongue closure
Tuck-in carton ends
Review flap geometry, locking behavior and carton stiffness. Confirm that the finished carton stays closed during the agreed handling test.
Selected glue configuration
Hot melt closure
A Meler hot melt unit is listed separately. Define adhesive, application pattern, compression and setting conditions for the intended carton.
A glued carton is not automatically a validated tamper-evident pack. Agree any opening, seal or presentation requirement with the carton design and acceptance test.
Technical reference
Coffee automatic cartoning machine WZTS-60 specifications.
Use these documented references for initial planning. The current machine configuration and sample test define the project acceptance.
| Item | Reference value | Selection note |
|---|---|---|
| Model / architecture | WZTS-60 / automatic vertical loading | Confirm product feeding, grouping and closure in the approved layout. |
| Cartoning speed | 10–30 cartons/min | Reference depends on the upstream capsule machine and selected product/carton. |
| Minimum carton size (L × W × H) | 40 × 30 × 50 mm | Dimension orientation and format parts require carton drawing approval. |
| Maximum carton size (L × W × H) | 180 × 180 × 300 mm | A size-range match alone does not establish loading suitability. |
| Carton board | About 350 g/m² | Source reference varies with carton size; test stiffness and fold behavior. |
| Compressed air pressure | ≥0.6 MPa | Confirm regulated pressure, air quality and connection. |
| Air consumption | 120–160 L/min | Confirm current machine demand and selected auxiliaries. |
| Power supply | 380 V, 50 Hz | Review local electrical requirements with the current proposal. |
| Main motor power | 1.5 kW | Main motor reference, not a total connected-load guarantee. |
| Machine dimensions (L × W × H) | 3700 × 1650 × 1900 mm | Confirm the supplied equipment envelope, feeder and service clearance. |
| Machine net weight | About 1400 kg | Verify final build and shipping weight before lifting or floor-load planning. |
Control components, inspection and electrical notes
| Item | Reference / decision | Confirmation required |
|---|---|---|
| Controls | Siemens PLC and touchscreen | Current bill of materials and approved substitutions. |
| Electrical and sensing | Schneider contactors and air switches; DELTA power switch; Omron photoelectric sensors | Final model numbers, local electrical requirements and support needs. |
| Pneumatics | AirTAC component references | Current pneumatic list, pressure and air supply. |
| Product count / inspection | Source describes an item-count setting and a feeding mechanism with a weight detector | Define the actual detection hardware, logic, reject confirmation and records; do not assume a finished-carton checkweigher. |
| Total electrical load | Not specified by the 1.5 kW main motor figure | Confirm machine, glue unit and selected auxiliary loads together. |
Line matching
Match cartons per minute to the product inside.
Carton rate depends on the accepted upstream product output and the number of items in each carton.
Planning relationship
Accepted items/min ÷ items/carton = cartons/min
Illustrative example: 120 accepted capsules/min ÷ 10 capsules/carton = 12 cartons/min before allowances for stops, losses and transfer behavior. This is planning arithmetic, not a machine performance guarantee.
A connecting device does not by itself guarantee synchronization or eliminate every line bottleneck. Review the complete interface and test it with the agreed upstream machine.
Configuration & scope
Select additions around the finished pack.
Configuration review · 01
Connecting & feeding device
The reference machine scope includes this device. Confirm its product, transfer and grouping design against the actual upstream equipment.
Configuration review · 02
Meler hot melt equipment
Listed as a separate item. Review adhesive, carton material, application pattern, power and service access.
Configuration review · 03
Full enclosure
A full enclosure is listed separately. Define guarding and interlocks for the project; enclosure alone does not establish certification.
Configuration review · 04
Carton format changes
Review each carton drawing and product arrangement. Confirm format parts, adjustment tasks and recipe settings.
Configuration review · 05
Inspection & reject handling
Agree the weight-detector or other selected inspection scope, trigger conditions, reject disposition and acceptance demonstration.
Configuration review · 06
Downstream equipment
Assess carton collection, case packing or other selected equipment as a separately defined line scope.
Machine price & quotation
Get a quote for your carton and line.
WZTS-60 price depends on the product feed, grouping, carton formats, closure equipment, enclosure and selected inspection. Request a current itemized offer with the layout and sample test scope.
Reference machine scope
Cartoner & feeding connection
- WZTS-60 automatic vertical-loading cartoner
- Connecting and feeding device
- Approved product grouping and carton route
- Agreed batch marking and closure configuration
The reference list names the cartoner with its connecting and feeding device. Confirm all mechanisms, inspection and delivered equipment in the signed quotation.
Separately specified scope
Options & integration
- Meler hot melt unit when selected
- Full enclosure when selected
- Additional carton format parts
- Selected inspection and rejection
- Upstream capsule machine and line connection
- Downstream carton handling or case packing
The capsule filling machine and complete end-of-line system are separate equipment. Define each supply boundary and test responsibility.
Send the inputs for a matched proposal
Carton drawing and board specification · product dimensions and samples · items per carton · loading arrangement · required output · closure style · upstream discharge details · inspection needs · local power and air · destination · installation and downstream scope.
Factory acceptance testing
Test the carton with your actual product.
A useful trial measures accepted cartons and demonstrates the agreed equipment functions.
Carton fit
Carton handling
Run production-intent blanks. Check separation, opening, folds, surface condition and closure behavior.
Product protection
Product loading
Check count, orientation and loading. Inspect capsules and lids after transfer and carton loading.
Accepted output
Line performance
Record accepted cartons, test duration, pauses and refill behavior. Demonstrate selected inspection and line stop responses.
What should the handover record contain?
- Approved carton drawing, board and production samples
- Product group, orientation and permitted pack variation
- Accepted output, run duration and operating conditions
- Batch marking, carton appearance and closure test results
- Selected inspection and reject function demonstrations
- Changeover, access, maintenance and guarding review
- Utility requirements, final layout and equipment interfaces
- Manuals, spare parts, training and outstanding test items
Before you order
Coffee automatic cartoning machine FAQ.
What is the WZTS-60 coffee automatic cartoning machine?
How fast is the WZTS-60?
What carton sizes and board are listed?
Can it pack coffee capsules, sticks or drip coffee bags?
Is the connecting and feeding device included?
Does the machine support hot melt glue closure?
Does the full enclosure establish CE certification?
Is carton weighing or product-count inspection included?
What electrical power and compressed air are required?
How much space and weight should I plan for?
How do I match the cartoner to a capsule filling line?
How do I get a current WZTS-60 price and delivery proposal?
Cartoning system selection
Compare the architecture around your product.
Equipment selection
Loading direction
Review vertical loading against the carton and product group. Use the cartoning machine selection hub to compare the wider architecture.
Project scope
Delivery responsibilities
Use turnkey packaging solutions to define upstream and downstream interfaces. Review Why INMAYPACK for the supplier discussion.
Handover
Support & changeovers
Discuss manuals, training, parts and installation responsibilities through service & support. Confirm the tasks needed for each approved carton format.
Primary packaging & related equipment
Plan what comes before the retail carton.
Primary packaging comparison
CF240 Coffee Capsule Machine
Review the capsule filling and sealing route, then define its discharge and cartoning interface.
Review machine →
Primary packaging comparison
YS-61 Coffee Stick Machine
Assess a different primary package. Stick grouping and cartoning need their own feeding and loading review.
Review machine →Build your coffee packaging line
Send your carton. Get a matched WZTS-60 proposal.
Share the product, carton, pieces per pack and output requirement. INMAYPACK can review the vertical-loading cartoner, feeding connection and selected closure equipment for your inquiry.
