Coffee Stick Packing Machine YS-61 — Automatic Stick Pack Machine for Instant & 3-in-1 Coffee
Factory-direct automatic coffee stick packing machine that forms, fills and seals 1–100 g powder sticks at 30–70 sticks/min — with PLC touch-screen control, ±1 °C PID sealing and 3-side, 4-side or back-seal formats.
Shanghai Factory · Since 2009
What Is the YS-61 Coffee Stick Packing Machine?
The YS-61 coffee stick packing machine is an automatic vertical form-fill-seal (VFFS) stick pack machine manufactured by INMAYPACK (Shanghai). It automatically completes bag forming, auger dosing, filling, sealing, cutting and counting for 1–100 g of instant coffee, 3-in-1 coffee mix or other fine powders, producing 30–70 sticks per minute in 3-side seal, 4-side seal or back-seal formats. PLC touch-screen control with stepper-motor bag-length adjustment and PID temperature regulation (±1 °C) keeps every coffee stick sealed consistently on films such as aluminum foil/PE, BOPP/PE and paper/PE.
Key Facts — YS-61 Coffee Stick Packing Machine
| Machine type | Automatic back-seal stick pack / sachet packing machine (VFFS, auger filler) |
|---|---|
| Model | YS-61XBF |
| Best for | Instant coffee, 3-in-1 coffee mix, ground coffee powder, cocoa, malt drinks, matcha, protein & pharmaceutical powders |
| Filling range | 1 – 100 g per stick |
| Speed | 30 – 70 sticks/min (single lane) |
| Stick size | Length 30–170 mm × Width 30–130 mm |
| Seal formats | 3-side seal · 4-side seal · back seal (stick pack) |
| Control system | PLC + touch screen, stepper-motor bag-length control, PID ±1 °C |
| Compatible films | BOPP/PE, aluminum foil/PE, paper/PE, PET/aluminized/PE, Nylon/CPP |
| Power / footprint | 220 V 50–60 Hz, 2.2 kW · 730 × 1000 × 1600 mm · 230 kg |
| Price | From US $5,500 (EXW Shanghai, configuration-dependent) |
| Manufacturer | INMAYPACK — flexible packaging machinery factory, Jinshan District, Shanghai, China (est. 2009, exporting to international markets) |
YS-61 Coffee Stick Packing Machine — Technical Specifications
Full technical parameters of the YS-61XBF automatic coffee stick packing machine. Need a different stick size or speed? Our engineers configure the auger, former and film width to your exact pouch.
| Parameter | YS-61XBF Specification |
|---|---|
| Measuring scope | 1 – 100 g |
| Bag length (L) | 30 – 170 mm |
| Bag width (W) | 30 – 130 mm |
| Packing speed | 30 – 70 bags/min |
| Sealing type | 3-side seal / 4-side seal / back seal (stick pack) |
| Dosing system | Direct auger (screw) filler for powders |
| Control | PLC + touch screen; stepper motor bag-length control |
| Temperature control | Intelligent PID controller, accuracy within ±1 °C |
| Packing materials | BOPP/PE · Aluminum foil/PE · Paper/PE · PET/Aluminized/PE · Nylon/CPP |
| Optional functions | Batch number / date printing, counting output |
| Power supply | 220 V, 50–60 Hz, 2.2 kW total |
| Machine dimensions | 730 × 1000 × 1600 mm (L × W × H) |
| Machine weight | 230 kg |
* Actual speed depends on fill weight, stick length and film. Request a free video test with your own coffee powder and film before shipment.

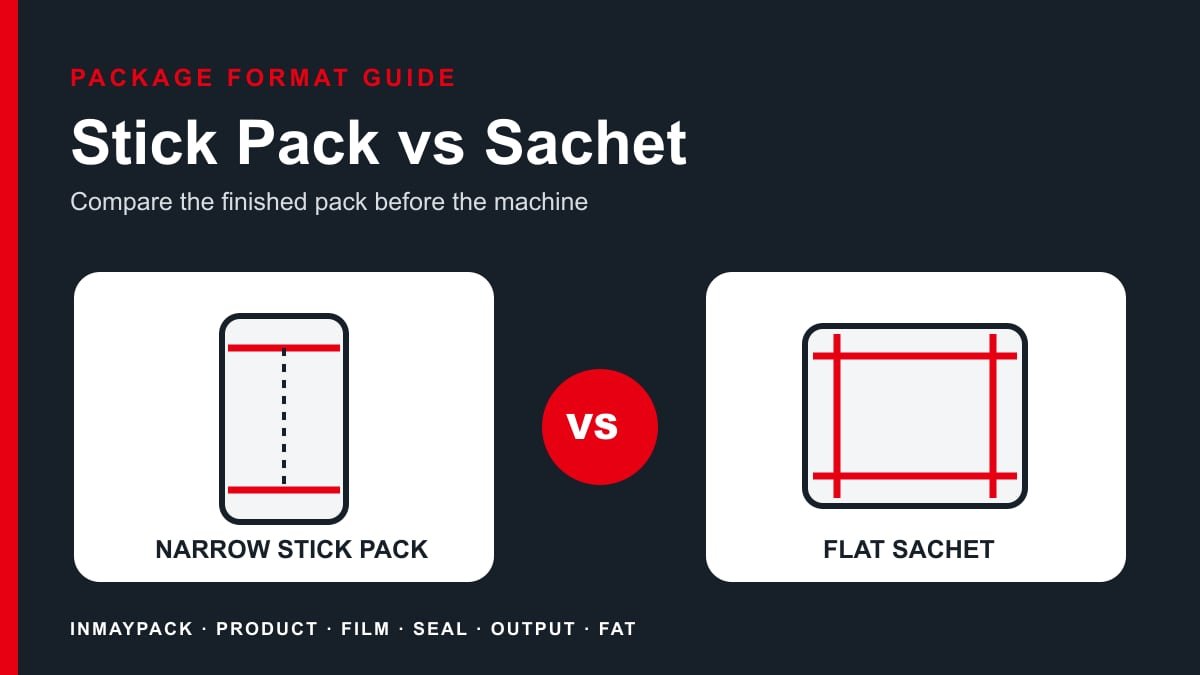

Three Seal Formats, One Coffee Stick Machine
The YS-61 switches between the three most requested single-serve coffee formats — so the same machine can run slim stick packs for 3-in-1 coffee today and flat sachets for drip-coffee powder tomorrow.
Back Seal — Stick Pack
The classic slim coffee stick (like hotel & airline instant-coffee sticks). Minimal film use per gram, easy one-hand tearing, and the best shelf presence for 3-in-1 and specialty instant coffee brands.
3-Side Seal Sachet
Flat sachet sealed on three sides — ideal for drip coffee powder, cocoa mixes and sample-size sachets where a wider printing area is needed for branding and instructions.
4-Side Seal Sachet
Fully framed four-side seal for premium presentation and maximum seal integrity — commonly chosen for pharmaceutical powders and export-grade coffee sachets requiring stronger barrier sealing.
Why Coffee Brands Choose the YS-61 Stick Pack Machine
Engineered for fine, aromatic powders — every subsystem of the YS-61 is tuned for accurate dosing, tight sealing and simple operation by a single worker.
Precision Auger Dosing (1–100 g)
A direct screw/auger filler measures instant coffee and 3-in-1 mixes gram-accurately across the full 1–100 g range, with minimal dust and powder waste at the seal area.
Fully Automatic Cycle
Bag making, measuring, filling, sealing, cutting and counting are completed automatically in one continuous process — one operator can run the whole line.
PLC + Touch-Screen Control
Store recipes, adjust stick length via stepper motor and monitor output on an intuitive touch screen. Stable performance, easy adjustment and accurate detection.
±1 °C PID Sealing Accuracy
The intelligent PID temperature controller keeps sealing-jaw error within 1 °C — clean, leak-free seals on aluminum foil, BOPP and paper-laminate coffee films.
Wide Film Compatibility
Runs BOPP/PE, aluminum/PE, paper/PE, PET/aluminized/PE and Nylon/CPP laminates — switch between barrier foil sticks and eco paper-based sachets on the same machine.
Optional Date & Batch Coding
Integrate a ribbon or TIJ coder to print batch numbers, production and expiry dates on every stick — meeting food-safety traceability rules in export markets.
Built for Coffee Powder — Down to the Details
From the powder hopper to grinder integration, the YS-61 slots into a complete coffee packaging line supplied by one factory.
Stainless Auger Dosing Unit
Food-grade SUS304 contact parts with a precision screw feeder keep coffee powder dosing accurate and hygienic.
Quick-Release Powder Hopper
Tool-free hopper removal for fast cleaning when switching between coffee blends, cocoa or flavored mixes.
Grinder-to-Stick Line Integration
We integrate industrial grinders, conveyors and the YS-61 into a grind-and-pack coffee stick line — one supplier, one warranty.
What Can the YS-61 Coffee Stick Machine Pack?
One auger-fed stick pack machine covers the entire single-serve powder category — coffee first, but far beyond coffee.
3-in-1 Instant Coffee Sticks
Coffee + creamer + sugar premix in 12–25 g back-seal sticks — the highest-volume format in Southeast Asia, the Middle East and Latin America.
Pure Instant & Specialty Coffee
2–5 g freeze-dried or spray-dried instant coffee sticks for hotels, airlines, offices and D2C specialty coffee brands.
Ground Coffee Sachets
Single-brew ground coffee portions in 3-side or 4-side seal sachets with aluminum barrier film to lock in aroma.
Cocoa, Malt & Milk Tea Powder
Hot-chocolate mixes, malt drinks and instant milk-tea powders in 15–40 g sticks and sachets.
Matcha, Collagen & Protein
Functional powders — matcha lattes, collagen sticks, electrolyte and pre-workout single serves from 1 g up.
Pharmaceutical & Chemical Powders
Oral rehydration salts, herbal granule powders and chemical sachets with 4-side sealing and batch-code traceability.
How Does a Coffee Stick Packing Machine Work?
The YS-61 turns a roll of laminated film and bulk coffee powder into finished, coded, counted sticks in five automatic steps — no manual handling between film and carton.
Film Unwinding & Forming
Roll film feeds through the forming collar and is shaped into a continuous stick tube; a photo sensor keeps printed film registered.
Auger Dosing
The screw filler rotates a programmed number of turns to measure the exact gram weight of coffee powder for each stick.
Filling
Powder drops through the forming tube into the partially sealed stick with dust-minimizing discharge.
Heat Sealing (±1 °C)
Vertical and horizontal jaws seal the stick in back-seal, 3-side or 4-side format under PID-controlled temperature.
Coding, Cutting & Counting
Optional date/batch coding prints on each stick before it is cut and counted for downstream cartoning.
Direct From an INMAYPACK Factory Engineer — Not a Trading Company
INMAYPACK has manufactured flexible packaging machinery in Jinshan District, Shanghai since 2009, exporting stick pack, sachet, doypack and coffee capsule machines to international markets.
Every YS-61 coffee stick packing machine is assembled, powder-tested with your actual product and film, and video-inspected with you before shipment. Electrical documentation, English HMI, manuals and remote engineering support are defined for the approved configuration — and because we also build coffee capsule filling machines and automatic cartoning machines, we can deliver your complete turnkey coffee packaging line from one factory.
Coffee Stick Packing Machine — FAQ
The YS-61 packs free-flowing powders from 1 g to 100 g per stick, including instant coffee, 3-in-1 coffee mix, ground coffee, cocoa powder, malt drinks, matcha, protein powder and pharmaceutical or chemical powders. Its auger dosing system is optimized for fine powders that need accurate, dust-controlled filling.
The YS-61 coffee stick packing machine starts from around US $5,500 EXW Shanghai. The final price depends on your stick size, film type, optional date coder and export packaging. Contact INMAYPACK with your product details for an exact quotation after reviewing your requirements.
The YS-61 runs at 30–70 sticks per minute depending on fill weight, stick length and film material. For higher outputs, INMAYPACK also offers multi-lane sachet packing machines that produce several lanes of sticks simultaneously.
The YS-61 works with heat-sealable laminated films including BOPP/PE, aluminum foil/PE, paper/PE, PET/aluminized/PE and Nylon/CPP. Its PID temperature control holds sealing accuracy within ±1 °C, so both aluminum and paper-based coffee stick films seal cleanly.
Yes. An optional ribbon or thermal inkjet coder can be integrated to print batch numbers, production dates and expiry dates on every coffee stick during sealing, meeting food-industry traceability requirements.
The YS-61 uses a standard 220 V, 50/60 Hz single-phase supply with 2.2 kW total power. The machine measures 730 × 1000 × 1600 mm and weighs 230 kg, so it fits small coffee roasteries and startup packing rooms without special installation.

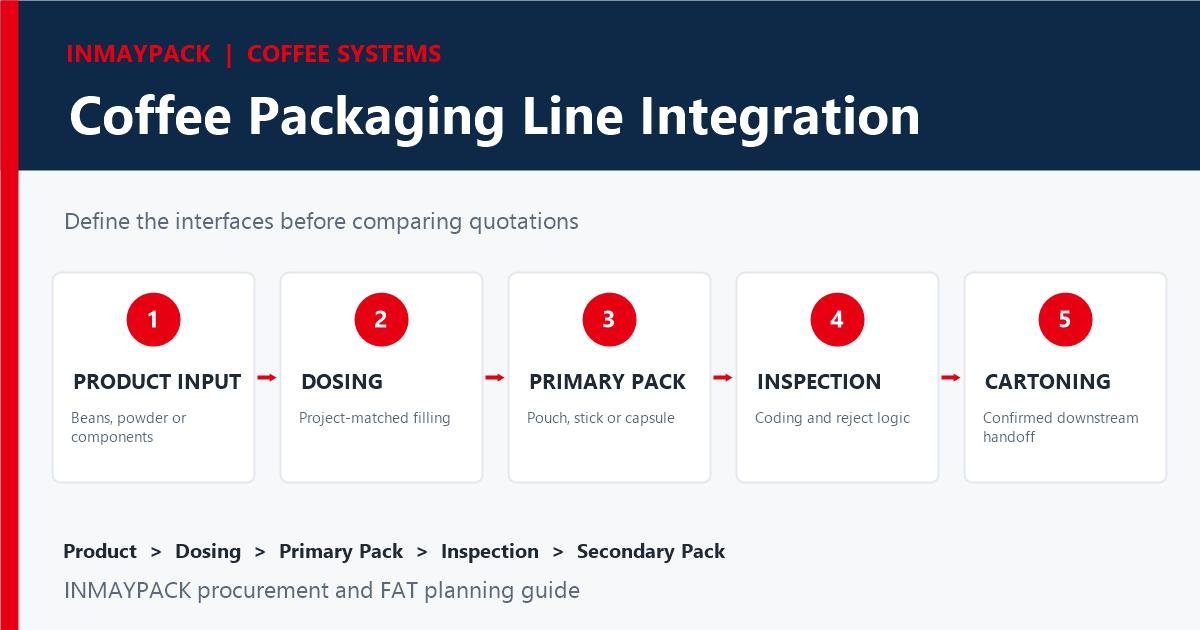

Complete Your Coffee Packaging Line
