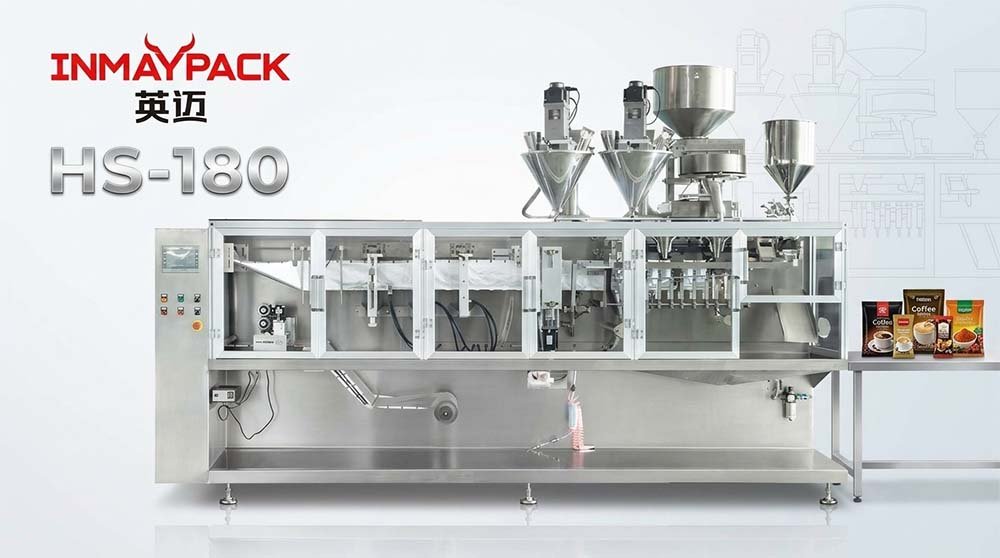

Multifunction Sachet Pouch Packing Machine HS-180
One horizontal FFS platform for liquid, powder, granule and paste. The HS-180 forms, fills and seals 3-side & 4-side seal flat sachets — plus zipper flat bags — at 40–70 bags/min with Mitsubishi PLC control and full SUS304 construction.
Shanghai factory · Exported to international markets
HS-180 Multifunction Sachet Pouch Packing Machine — Definition & Key Facts
Key Facts
| Machine type | Horizontal form fill seal (HFFS), intermittent motion, single filling station |
|---|---|
| Model / Brand | HS-180 · INMAYPACK (est. 2009, Shanghai, China) |
| Bag styles | 3-side seal & 4-side seal flat sachet; optional zipper flat bag, tear notch, euro slot |
| Products handled | Liquid, powder, granule, paste (interchangeable filling systems) |
| Speed | 40–70 bags/minute |
| Pouch size range | Min 60×80 mm · Max 180×220 mm · Max volume 400 ml |
| Control system | Mitsubishi PLC · Weinview touchscreen HMI · Panasonic servo film pulling |
| Construction | SUS304 stainless steel frame & product-contact parts |
| Compliance | CE standards · ≤70 dB noise · 5.0 kW · 200–415 V, 50/60 Hz |
HS-180 Sachet Packing Machine Specifications
Machine Parameters
| Machine operation | HFFS — Horizontal form fill and seal |
|---|---|
| Pouch origin | Formed from roll film (reel) |
| Pouch transport | Intermittent motion |
| Machine frame | Stainless steel SUS304 appearance |
| Internal mechanisms | SUS304 stainless steel & aluminum alloy |
| Product-contact parts | Stainless steel SUS304 |
| Reel diameter / width / core | 400 mm / 440 mm / 76 mm |
| Filling stations | 1 station |
| Pouch size (L×W) | Min 60×80 mm — Max 180×220 mm |
| Packaging speed | 40–70 bags/minute |
| Max pouch volume | 400 ml |
| Machine dimensions | 3200 × 970 × 1300 mm |
| Machine weight | 1200 kg |
| Power / Air | 5.0 kW · 100 L/min @ 0.6 MPa |
| Electrical supply | 200–415 V, 50/60 Hz, N+G (customizable) |
| Noise level / Safety | ≤70 dB · CE standards |
Electrical Configuration
| PLC controller | Mitsubishi (Japan) |
|---|---|
| Servo motor & controller | Panasonic (Japan) |
| Frequency control | Schneider (France) |
| Touchscreen HMI | Weinview |
| Temperature controller | Fuji (Japan) |
| Photoelectric switch | Sick (Germany) |
| Bearings | SKF & IGUS |
| Pneumatic components | Festo (Germany) |
| Optional modules | Auger screw feeder · Screw elevator · Zipper station · Tear notch · Euro hole punch · Dust remover · Checkweigher · UV laser coder · Outfeed conveyor |
|---|
Final dose, sachet size and output are confirmed after product samples and packaging film tests, per INMAYPACK standards.
One Sachet Machine, Four Filling Technologies
The HS-180 separates bag-making from filling, so the same HFFS chassis runs liquid, powder, granule or paste simply by mounting the matching filler — the most cost-efficient way to cover a multi-product sachet line with a single machine.
Multifunction Filling Systems
Interchangeable fillers — piston pump for liquid, auger screw for powder, volumetric cup or weigher for granules, rotor pump for paste — let one HS-180 pack sauces, drink powders, seeds, pharmaceuticals and detergents.
Panasonic Servo Film Pulling
A Panasonic servo motor drives the sachet pulling gripper by pulse count for precise, repeatable bag length — stable registration and quick size changeover from the touchscreen.
Independent Bag-Making & Filling
Bag forming, sealing and filling run as independent systems coordinated by mechanical coupling and Mitsubishi PLC — adaptable to a wide range of products and sachet formats without mechanical rebuilds.
Frequency Conversion Mainframe
Imported AC motor with Schneider frequency conversion delivers stable low-speed, high-torque operation — consistent sealing quality even under sharp load fluctuations.
Flexible Bag Formats
3-side seal and 4-side seal flat sachets as standard; add the zipper station, tear notch system or euro hole punch to produce resealable retail-ready flat pouches on the same machine.
Integrated PLC + HMI Control
Mitsubishi PLC, Weinview touchscreen, Sick photoelectric registration and Festo pneumatics form one integrated control platform — high reliability, recipe storage and simple operator training.
What the HS-180 Sachet Pouch Machine Packs
Liquid, powder, granule or paste — the HS-180's interchangeable filling systems cover four material states across food, pharmaceutical, agrochemical and daily-chemical production lines.
Sauces & Condiments
Ketchup, mayonnaise, chili sauce, honey, jam and syrup in single-serve liquid or paste sachets with rotor/piston pump filling.
Beverage & Food Powders
Instant coffee, milk powder, drink mixes, seasoning, flour and baking soda dosed by Panasonic servo auger filler.
Granules & Seeds
Sugar, rice, seeds, snacks, desiccants and fertilizer granules in accurate 4-side seal flat pouches up to 400 ml.
Pharmaceuticals
Oral powders, granulated medicine and nutraceutical sachets with SUS304 product-contact parts and CE-standard build.
Daily Chemicals
Shampoo, detergent, lotion and cosmetic sample sachets — leak-tight heat sealing for viscous liquids.
Pesticides & Agro
Water-soluble pesticide powders and liquid agrochemicals in dosage-controlled single-use flat sachets.
Zipper Retail Pouches
Resealable zipper flat bags with tear notch and euro slot for supermarket peg-hook display.
Turnkey Line Integration
Combine with screw elevator, checkweigher, dust remover, UV laser coder and conveyor for a complete sachet packing line.
Built by INMAYPACK — Sachet Machine Factory Since 2009
INMAYPACK engineers and manufactures the HS, HMK and HMS series of horizontal flexible packaging machinery at our factory on Caolang Road, Jinshan District, Shanghai. Every HS-180 is assembled, wired and factory-acceptance-tested in-house before dispatch.
Buying factory-direct means engineer-to-engineer technical support, film and dose validation on your actual product samples, and machines configured to your voltage, bag format and filler requirements — not a reseller's stock unit.
- Warranty coverage and exclusions defined in the valid project proposal and contract
- Approved commissioning and spare-parts package recorded for the supplied configuration
- On-site installation, commissioning and 2-day operator training available
- Vulnerable spare parts kit delivered together with the machine
- Panasonic, Mitsubishi, Schneider, Sick, Festo, SKF component ecosystem
HS-180 Sachet Packing Machine — Frequently Asked Questions
The HS-180 handles liquid, powder, granule and paste products by mounting the matching filling system: piston pump for liquids, auger screw feeder for powders, volumetric cup or weigher for granules, and rotor pump for pastes. Typical applications include sauces, drink powders, seeds, pharmaceutical powders, shampoo, detergent and pesticides.
The HS-180 runs at 40–70 bags per minute depending on product and pouch size. It forms pouches from 60×80 mm up to 180×220 mm with a maximum fill volume of 400 ml, drawn from roll film up to 440 mm wide on a 400 mm diameter reel.
As standard, the HS-180 produces 3-side seal and 4-side seal flat sachets from heat-sealable roll film such as polyethylene and multilayer laminates. Optional modules add zipper flat bags, tear notch, euro hole punch for peg-hook display, and date coding via UV laser printer.
The HS-180 is controlled by a Mitsubishi PLC with a Weinview touchscreen HMI. Film pulling uses a Panasonic servo motor and motion controller, speed regulation uses a Schneider frequency converter, and sensing, sealing and pneumatics use Sick photoelectric switches, Fuji temperature controllers, Festo pneumatic components and SKF/IGUS bearings.
Every HS-180 carries a one-year warranty covering manufacturing defects on all parts. During the warranty period, INMAYPACK ships free replacement spare parts by international express within 10 days of a confirmed claim. A vulnerable spare parts kit is delivered with the machine, and on-site installation, commissioning and a 2-day operator training course are available.
Send us your product details, target dose and bag size to receive a configured quotation. Orders are confirmed with a 40% T/T initial deposit; INMAYPACK then validates dose, sachet size and output on your product samples and packaging film during factory acceptance testing (FAT), with the agreed balance paid before dispatch. Typical delivery is 60 working days after the initial deposit, FOB Shanghai.
